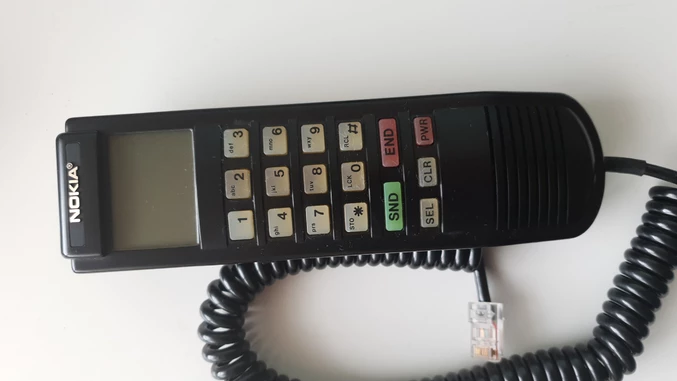

NOKIA LX11 & M11

NOTES: These are dual NAM units.The ESN prefix is 165 decimal & A5 hex.Nokia: 813-536-5553

NAM PROGRAMING:

1. Turn power on.

2. Enter * 3 0 0 1 # S S S S S SEL 9 END where SSSSS is the security code1 2 3 4 5 is the factory default.

3. If the above was successful the phone will display “IdEnt IF InFO Pri”

Skip to step 6 to program NAM 1, or complete steps 4 & 5 to switch to NAM 2.

4. Press SND and the phone will display “OPt InFO diSAbLEd”

5. Press SND and the phone will display “OPt InFO EnAbLEd”

6. Press END, the first data entry will be displayed.

7. Press END to store and increment each step.

8. The SND key toggles single digit options.

9. Press SEL CLR to exit programing having entered all steps.

PROGRAMING DATA

STEP# #OF DIGITS/RANGE DISPLAY DESCRIPTION

01 00000 – 32767 HO-Id SYSTEM ID02 0 OR 1 MIN Mark MIN MARK03 0 OR 1 LOCL OPt LOCAL USE MARK04 10 DIGITS Phonxx MIN (AREA CODE & TEL#)05 08 ONLY St CLASS STATION CLASS MARK06 333 OR 334 PAging Ch INITIAL PAGING CHANNEL07 2 DIGITS O-LOAd CLASS ACCESS OVERLOAD CLASS08 A OR B PrEF SyS PREFERRED SYSTEM (SND TOGGLES)09 2 DIGITS grOUP Id GROUP ID (10 IN USA)10 5 DIGITS SECUrity SECURITY CODE11 MM/DD/YY 1 dAtE CAN NOT BE CHANGED12 MM/DD/YY 2 dAtE INSTALLATION DATE

13 Prog done PRESS SEL CLR TO EXIT

LOCK: SEL LCK. UNLOCK: Enter four digit code.

SYSTEM SELECT: SEL 1 then 1 to scroll: A = A only, b = B only, S = Pref/nonpref, H = Home only.

Nokia LX11 M11 - 1989
