Design

Dimensions

  • Size: 113.5 x 59 x 12.9 mm
  • Weight (with battery): 135 g
  • Volume: 86 cc

Display and user interface

  • Screen size: 3.5″
  • Resolution: 16:9 nHD (640 x 360 pixels) AMOLED
  • 16.7 million colours
  • Capacitive touch screen
  • Orientation sensor (Accelerometer)
  • Compass (Magnetometer)
  • Proximity sensor
  • Ambient light detector

Keys and input methods

  • Physical keys (Menu key, Power key, Lock key, volume keys, Camera key)
  • Finger touch support for text input and UI control
  • On-screen alphanumeric keypad and full keyboard
  • Dedicated camera and volume keys
  • Possibility to use capacitive stylus
  • Handwriting recognition for Chinese

Colours

  • Anodized aluminium casing, available in:
    • Silver white
    • Dark grey
    • Orange
    • Blue
    • Green
  • Colour availability varies by country

Personalisation

  • Up to three customisable home screens:
    • Widgets
    • Themes
    • Shortcuts
    • Icons
    • Menu
  • Customisable profiles
  • Ring tones: mp3, AAC, eAAC, eAAC+, WMA, AMR-NB, AMR-WB
  • Themes
    • wallpapers
    • screensavers
    • audio themes
    • pre-installed themes
    • changeable colour themes


Hardware

Power Management

  • BL-4D 1200 mAh Li-Ion battery
  • Talk-time (maximum):
    • GSM 720 mins
    • WCDMA 350 mins
  • Standby time (maximum):
    • GSM 390 h
    • WCDMA 400 h
  • Video playback time (H.264 720p, 30 fps, maximum): 6 h (via HDMI to TV)
  • Video recording time (H.264 720p, 25 fps, maximum): 3 h 20 mins
  • Video call time (maximum): 160 mins
  • Internal memory: 16 GB music playback time (offline mode, maximum): 50 h

Operation times may very depending on radio access technology used, operator network configuration and usage.

Memory

  • Internal memory: 16 GB
  • MicroSD memory card slot, hot swappable, up to 32 GB

Operating Frequency

  • GSM/EDGE 850/900/1800/1900
  • WCDMA 850/900/1700/1900/2100
  • Automatic switching between WCDMA & GSM bands
  • Flight mode

Data Network

  • GPRS/EDGE class B, multislot class 33
  • HSDPA Cat9, maximum speed up to 10.2 Mbps, HSUPA Cat5 2.0 Mbps
  • WLAN IEEE802.11 b/g/n
  • TCP/IP support
  • Capability to serve as data modem
  • Support for MS Outlook synchronisation of contacts, calendar and notes

Requires data service. Data Services may not be available in all networks. Data transmission speeds may be as high as HSDPA 10.2 Mbps, but may vary based upon network capabilities and other conditions. The establishment and continuation of a data connection depends on network availability, provider support and signal strength.

Connectivity

  • Bluetooth 3.0
  • HDMI
  • 2mm Charging connector
  • Micro USB connector and charging
  • High-Speed USB 2.0 (micro USB connector)
    • USB On-the-Go
  • 3.5 mm AV connector
    • FM Radio
    • FM Transmitter


Software & applications

Software platform & user interface

  • Symbian ^3 for Nokia
  • Java MIDP 2.1
  • Qt 4.6.2, Web Runtime 7.2
    • HTML 4.1
  • Software updates Over the Air (FOTA) & Over the internet (FOTI)
  • Flash Lite 4.0
  • OMA DM 1.2, OMA Client provisioning 1.1

Applications

  • Key applications: Calendar, Contacts, music player, internet, messaging, photos, Ovi Store, Maps, Videos, WebTV, Office document editors, Video & photo editor, Mail, Chat, Radio
  • PC Applications: Nokia Ovi Suite, Nokia Ovi Player

Personal Information Management (PIM)

  • Detailed contact information
  • Calendar
  • To-do list
  • Notes
  • Recorder
  • Calculator
  • Clock


Communications

Email and messaging

  • Easy-to-use email client with attachment support for images, videos, music and documents .doc, .xls, .ppt, .pdf, .zip
  • HTML support for email
  • Unified email client for multiple protocols: Yahoo!® Mail, Gmail™, Windows Live™, Hotmail and other popular POP/IMAP services, Mail for Exchange, IBM Lotus traveler
  • Editing of key office documents
  • Email web widget for home screen
  • Chat instant messaging support: OVI Chat, Yahoo, AIM, Windows Live, Gtalk, MySpace*
  • Unified MMS/SMS editor
  • Conversational view for SMS
  • Push email and expanded portal support available through Nokia Messaging for Email and Instant Messaging

* Some services may be available only via downloading or dependent on the market. Only devices that offer compatible multimedia message or e-mail features can receive and display multimedia messages. Content appearance may vary. Some images and ring tones can not be forwarded.

Call management

  • Contacts: advanced contacts database with support for multiple phone and e-mail details per entry with personal thumbnail pictures and video clips
  • Smart dialling to find phone numbers quickly
  • Speed dialling, voice dialling (speaker independent) and voice commands
  • Logs of dialled, received and missed calls
  • Conference calling
  • Integrated hands-free speaker
  • Video calling


Sharing & Internet

Browsing and internet

  • Full web browsing of real web pages
  • Web browsing with touch control
  • Supported markup languages: HTML, XHTML MP, WML, CSS
  • Supported protocols: HTTP v1.1, WAP
  • TCP/IP support
  • Visual history, HTML and JavaScript support
  • Flash Lite 4 will support a majority of Flash Player 10.1 content
  • Nokia Mobile Search
  • RSS reader
  • Support for streaming video


Navigation

GPS and navigation

  • Integrated GPS, A-GPS receivers
  • Ovi Maps with free car & pedestrian navigation
  • Wi-Fi Positioning
  • Compass and accelerometer for correct orientation of display
  • Use Nokia Ovi Suite to get the latest country maps for Ovi Maps on N8 for free

* Downloading of maps over-the-air may involve transferring large amounts of data. Your service provider may charge for the data transmission. The availability of particular products, services, and features may vary by region. Please check with your local Nokia dealer for further details and availability of language options. These specifications are subject to change without notice.



Photography

Camera

  • 12 megapixel camera with Carl Zeiss optics
  • Fullscreen 16:9 viewfinder with easy-to-use touch screen parameters
  • Xenon flash
  • Face recognition software
  • Autofocus
  • Focal length: 5.9 mm
  • F number/Aperture: F2.8
  • Still images file format: JPEG/EXIF
  • Zoom up to 2x (digital) for still images
  • Zoom up to 3x (digital) for video
  • Secondary camera for video calls (VGA, 640 x 480 pixels)

Image capture

  • Automatic location tagging (Geotagging) of images and videos
  • Images automatically taken in the correct orientation
  • Pinch zoom in Photos image viewer
  • View photos by tag cloud, month, album, slide show
  • Photo editor
  • Online Share with connectivity to popular sharing services

Other

  • Internal memory: 16 GB
  • MicroSD memory card slot, hot swappable, up to 32GB
  • High-Speed microUSB to PC connectivity


Video

Video cameras

  • Main camera
    • 12 megapixel with Carl Zeiss optics
    • HD quality 720p resolution
    • Shoot 16:9 videos in HD
  • Video capture in 720p 25 fps with codecs H.264, MPEG-4
  • Settings for scene, white balance, colour tone
  • Secondary camera VGA for video calls

Video codecs & formats

  • H.264 (base profile, main profile, high profile), MPEG-4, VC-1, Sorenson Spark, Real video 10
  • Streaming: H.264, Flash Lite 4 (Flash 10 compatibility for video), On2 VP6, Sorenson Spark

Video sharing and playback

  • HD 720p Video plabyack on HD TV through HDMI cable
  • *Dolby Digital Plus surround sound when played with HDMI & a home theatre
  • Support for download, streaming, and progressive download
  • Video editing software
  • Videos application: collection of stored videos
  • On demand WebTV widgets to watch local & global internet streaming TV
  • Support for Flash video
  • YouTube browsing and streaming
  • Video call support (WCDMA network services)

*Dolby Digital Plus technology. Dolby is a registered trademark of Dolby Laboratories.



Music & audio

Music features

  • Flick scroll to browse the albums in your music collection
  • Ovi Music Unlimited service on selected markets
  • Nokia Ovi Player
  • Ovi Music store
  • Music codecs: .MP3, WMA, AAC, eAAC, eAAC+, AMR-NB, AMR-WB
  • Bit rate up tp 320 kbps
  • DRM support WM DRM, OMA DRM 2.0
  • FM transmitter

Radio

  • Stereo FM radio (87.5-108 MHz/76-90 MHz)


Gaming

  • Use the touch UI to play games
  • Dedicated graphics processor with OpenGL 2.0 enables 3D graphics
  • Java games
  • Use the accelerometer to play games


Environmental features

Energy efficiency

  • Power Save mode, ambient light sensor, unplug charger reminder, Nokia Compact Travel Charger AC-15

Materials

  • Free of PVC, free of brominated & chlorinated compounds and free of antimony trioxide as defined in Nokia Substance List, bio-based materials in inner parts of the product

Packaging

  • Made of renewable, 100 % recyclable

Eco content and services

  • Available at Ovi, preinstalled eco wallpapers, maps for route optimization and pedestrian navigation

Recycling

  • All materials of the device can be recovered as materials and energy

User guide

  • Interactive user help in device and online, only Quick Guide in the box, eco tips on Green Page


Package contents

Standard Sales Package

  • Nokia N8 mobile computer
  • Nokia Battery BL-4D
  • Nokia Connectivity Cable CA-179
  • Nokia Stereo Headset WH-701
  • Nokia Compact Travel Charger AC-15
  • Nokia Adapter Cable for HDMI CA-156
  • Nokia Adapter Cable for USB OTG CA-157
  • Nokia Stylus SU-36 (selected markets only)
  • Quick start guide

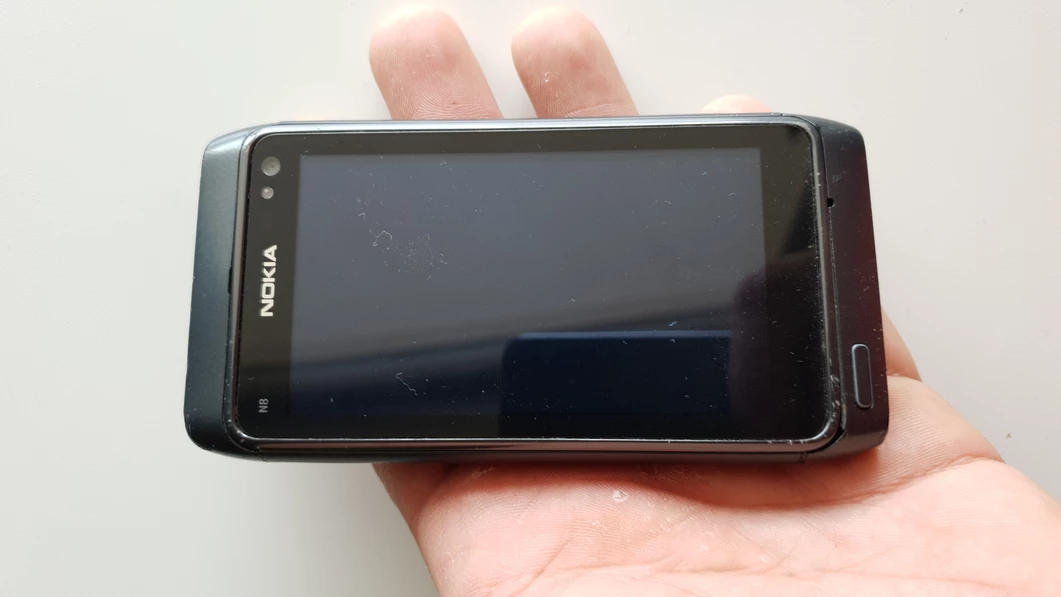

Nokia N8 - 2010

02 septembrie 2019
